Main Processing Range of the Equipment

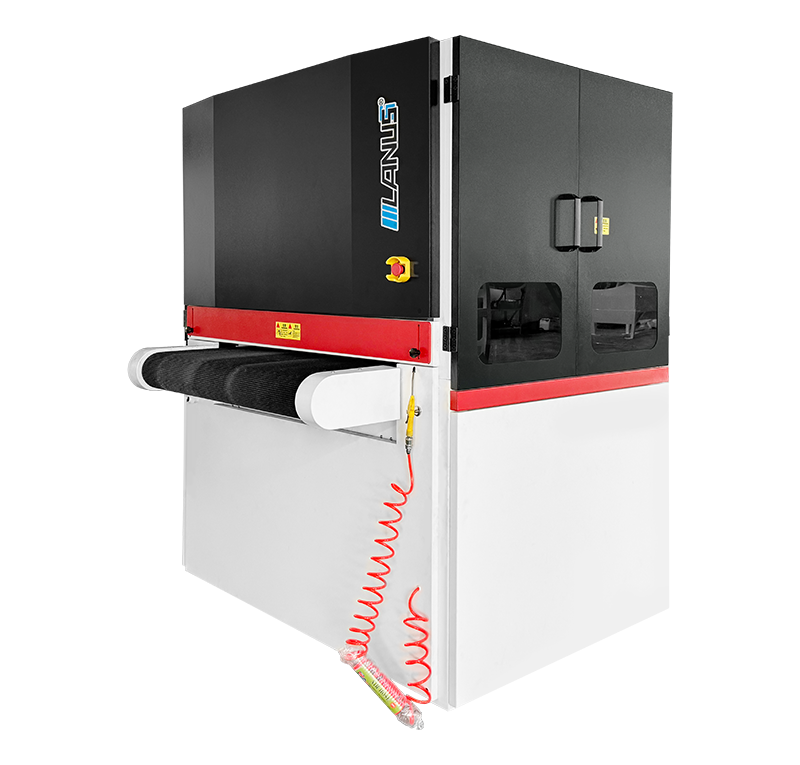

This equipment is a dry-type double-wide abrasive belt combined machine. It is mainly used for deburring, scratch removal, wire drawing, oxide scale removal, polishing and other surface processing treatments of metal plates.

Processed Products: Stainless Steel, Carbon Steel, Aluminum Plates, Copper Plates, Various Non-Ferrous Metals, etc.

Working Principle of the Equipment

This equipment first removes burrs, scratches, oxide scale and other defects on the workpiece surface through a set of abrasive belt stations, then performs wire drawing and polishing on the workpiece surface via a set of fine abrasive belt stations. The pass-through processing ensures no damage to the dimensional accuracy of the workpiece.

The conveying system adopts rubber roller pinch feeding, with the conveying speed regulated by variable-frequency stepless speed control.

Equipped with a wet dust collector, it reduces potential safety hazards and efficiently handles grinding dust. Through the high-pressure and high-flow fan at the top, the grinding dust is sucked into the dust removal chamber. The dust is settled in water via water spray, achieving environmentally friendly filtration and absorption of the dust, while clean air is discharged into the atmosphere.

To provide operators with a good working environment, recycle grinding metal powder, and achieve environmentally friendly production.
